This is the first post of a series called Widget of the Week.

Check out all of the Widget of the Week articles and follow Gitconnected to make sure you don’t miss any upcoming widget tutorials

Transforming a gif to a full working HTML control is not as easy as it sounds, so I’ll be also writing about the process and explaining the reason behind the solution for the tricky parts.

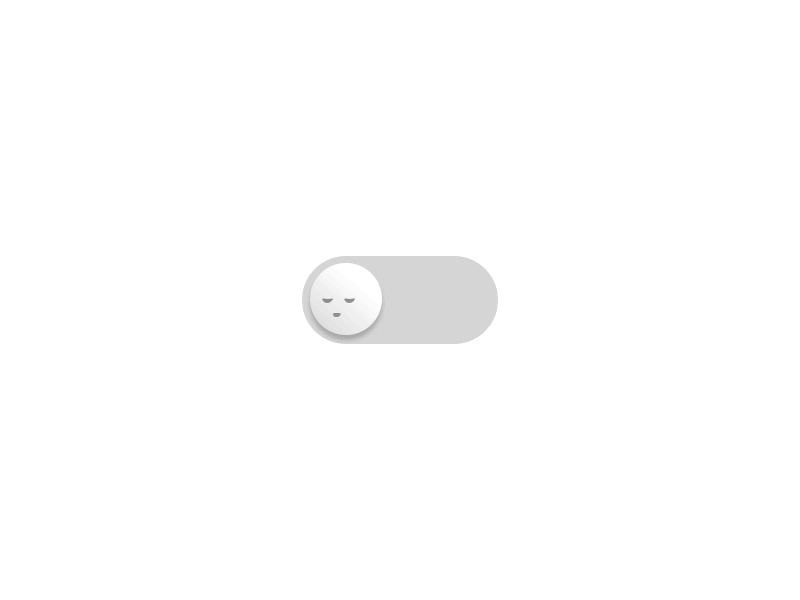

Without further ado, this week widget is this toggle control:

Preparing the elements

First we need to identify the parts of the widget. It looks like we need a container for the control, a background, the ball, and the faces inside the ball.

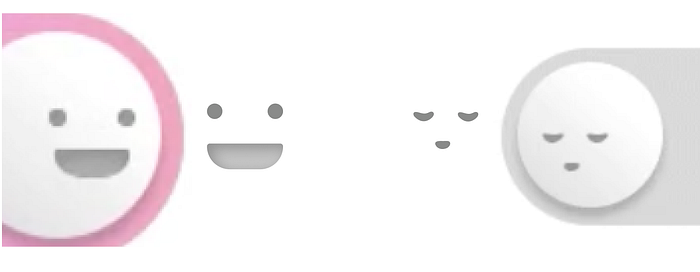

Almost everything can be done with HTML + CSS. The faces could be done with some CSS magic but I thought it would be easier to fire up an app and create SVG nodes for them. I just took a screen shot and redraw them:

SVGs in the center, screenshots at the edges

We have now everything to start coding.

The HTML structure

The basic structure started to look like this:

Starting HTML

Then I started to add some style to them, I used border radius for both the background and the ball-face, gradients, and box-shadow helped to give volume to the sphere. Also I had to set the -webkit-tap-highlight-color to remove the highlight that appears when you tap on mobile. Then after some trial an error, I positioned the faces SVG.

Starting CSS Styles

The interaction logic

To make the control work we need some JS code, so I imported Vue.js to quickly integrate the functionality.

Something like this is enough to start:

Starting Vue.js logic

Now, we just need to bind the toggle method to our toggle control inside the HTML like this:

<div id="widget" class="center">
<div @click="toggle" class="toggle-container">]
// ... rest of html

At the moment there won’t be any visual changes, but if we inspect into the component it is already working, toggling the active property on each click. So the next thing to do is change the appearance depending on that property.

Binding CSS classes to Vue property

First I needed to create the CSS rules that would be applied when the toggle is active so I created classes like

// CSS
.ball-face.active {
left: 87px;
}

That will move to the right ball-face immediately without the animation, so we need a transition inside our .ball-face class:

// CSS
.ball-face {
... other rules
transition: left .4s ease-in-out;
}

That will animate the property left in 0.4 seconds with a change of acceleration (ease) of type in-out. If you want to know more about transitions in CSS and what easing is, you can check this page.

After that we need to somehow append the active class to the HTML when the Vue property is true. We need to bind the class like this:

// HTML
<div :class="{'active': active}" class="ball-face">

Notice the colon in :class that helps binding the Vue properties to show or hide the 'active' class. That class will append to the already defined class 'ball-face'.

I attempted to do the same for the rest of the properties. The only problem I had was when trying to animate the background color for the container, it looks like CSS transitions don’t support that property yet. I had to do a work-around by having two backgrounds, a gray one and the colorful one one above the other. Instead of transitioning the color I just needed to animate the opacity.

For the faces I animated the left property too, then in the ball I put overflow: hidden; to mask the content. This is how it looks without the masking:

No ‘overflow: hidden’ property

Accessibility

Our component has the functionality of a checkbox, so according to the MDN webdocs if we want to make it accessible we need to add a couple of properties. Also it mentions that the ‘space’ button is expected to toggle the control and I thought that the ‘Enter’ key should toggle it too, so I ended up with these bindings:

//HTML
<label for="toggleControl">Click the sleepy face!</label>
<div @click="toggle"
@keyup.space="toggle"
@keyup.enter="toggle"
:aria-checked="isChecked"
class="toggle-container"
role="checkbox"
tabindex="0" id="toggleControl">
... rest of html

And now the final result!

That’s it for the first Widget of the Week. If you want to request a specific widget for next week, post it in the comments section.

See you next week and follow gitconnected to get every weekly widget!
